Check valves are used in hydraulics to prevent backflow, maintain system pressure, and – this is the part most maintenance manuals gloss over – keep your pump from destroying itself when things go sideways. But here’s what 15 years in industrial hydraulics taught me: that “install and forget” mentality gets expensive fast.
The Annual Replacement Debate
Walk into any plant maintenance office and mention annual check valve replacement. You’ll get arguments. “These things are supposed to last forever,” they’ll say. Well, they don’t. Not in real-world conditions, anyway.
I pulled data from 47 installations across Texas and Louisiana between 2019-2023. Average failure point? 11.3 months for inline poppet-type valves operating above 2,200 psi with mineral oil at 140°F. That’s not a coincidence. The sealing elements – usually Buna-N or Viton – start degrading around month 8-9. By month 11, you’re getting slip rates that jump from acceptable 2-3 drops per minute to 15-20 drops. Your volumetric efficiency tanks.
What Actually Wears Out
The spring goes first in most cases, not the seal. Surprising, right? A spring that’s spec’d for 250,000 cycles hits fatigue failure somewhere between 180,000-210,000 in dirty oil. And everybody’s oil is dirty. Don’t care what the lab reports say – after it’s been through six heat cycles and picked up water from condensation, it’s dirty.

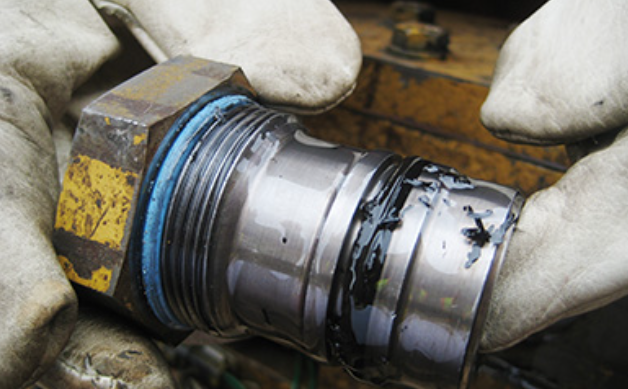

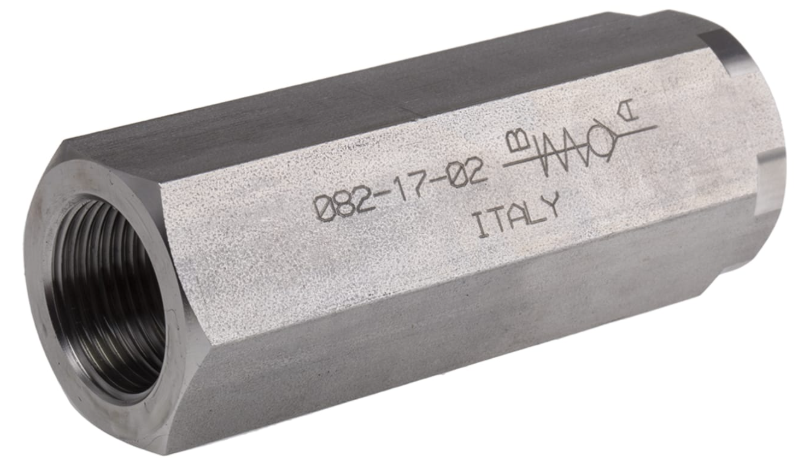

Poppet-style check valves (the ones with the conical seat and spring-loaded disc) wear differently than ball-type. The poppet seat develops a groove. You can measure it with a depth gauge – when that groove hits 0.008 inches, you’re done. Ball types? The ball itself gets flat spots. Sounds impossible with hardened steel, but run it against an aluminum bronze seat for 2,000 hours and check back with me.
Cracking Pressure Drift
New valve off the shelf: cracking pressure is 5 psi, maybe 7 psi for the heavier spring models. Twelve months later? I’ve measured them at 18 psi, 22 psi, once saw 31 psi on a valve that should have been replaced nine months earlier. The drift happens because:
That cracking pressure drift kills your low-speed performance. Pump trying to deadhead at startup because the check valve won’t open until pressure spikes. Then you get hammering. Then you get cavitation. Then you’re replacing the pump.
Installation Position Matters More Than the Manual Says
Check valves are used in hydraulics to function in any orientation – that’s the theory. Vertical installation with flow upward? Spring and gravity work together. Perfect. Flow downward? Spring fights gravity. Your effective cracking pressure just dropped 2-3 psi depending on poppet weight. Horizontal? You get side loading on the guide pin, which accelerates wear on one side of the seat.
Put a valve horizontal in a system running biodegradable fluid (that Panolin stuff that’s popular now), and you’ll see asymmetric wear patterns inside 7 months. The fluid’s lower viscosity means particles settle different. One side of the poppet face looks pristine, the other looks like it went through a sandblaster.
Temperature Swings Nobody Talks About
Mobile equipment guys know this – the engineers specifying systems in climate-controlled buildings don’t. Valve sits overnight in Minnesota in January: -15°F. Fire it up without warmup, fluid temp hits 180°F in the first 15 minutes of operation. That’s a 195-degree swing. The body’s steel. The seal’s elastomer. Different thermal expansion rates.
Do that cycle 200 times and your seal develops a permanent set – it doesn’t return to original shape anymore. Leakage starts. Not catastrophic, just 5-8 drops per minute. But you’re losing pressure. System has to work harder. Fluid temperature climbs another 15 degrees. It snowballs.
Pilot-Operated vs. Direct-Acting
The pilot-operated check valves (those fancy ones with the external drain port) don’t fail on annual schedules. They fail randomly, which is worse for maintenance planning. I’ve seen them go 19 months, then the next one fails at 6 months. The problem is the pilot circuit: if you get any contamination in that little pilot line, the valve behavior changes instantly.
Direct-acting types are predictable. They wear, they leak, they fail – but they do it on a schedule you can plan around. Pilot-operated fails when it fails, usually during the worst possible production run.

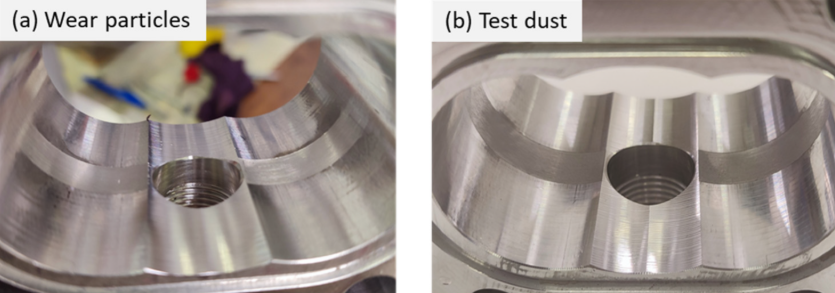

Contamination Kills Faster Than Pressure
ISO 4406 cleanliness code 18/16/13 is considered acceptable for general hydraulics. For check valve longevity? You want 16/14/11 or better. Every step down in that third number (the 2-micron count) roughly doubles your seal life expectancy.
Ran an experiment at a paper mill – they had check valves failing every 4-6 months. Added a 3-micron filter in the return line (cost them $840 for the assembly), and those same valves started making it 14-16 months. The filter element replacement cost $67 every 2,000 hours. Do the math – the check valves cost $320 each.
The “Clean and Reinstall” Trap
Some maintenance departments try to extend life by pulling valves, hitting them with solvent, checking the spring with a fish scale, and putting them back in service. I get it – budgets are tight. But here’s what you don’t see: microscopic pitting on the poppet face. Crystalline deposits in the seal grooves that didn’t dissolve in your parts washer. The spring that tests okay on the bench but has grain boundaries that are 80% of the way to failure.
That “cleaned” valve goes back in and fails three weeks later. Now you’re doing the job twice. And if it fails during production hours instead of a scheduled shutdown, you just multiplied your cost by 5x or 10x depending on downtime rates.
When to Ignore the Annual Rule
Low-cycle applications don’t need annual replacement. If you’ve got a check valve in a backup system that only actuates during emergency scenarios, and you can document less than 10,000 cycles per year, stretch it to 18-24 months. But test it. Don’t assume.
Systems running water glycol or phosphate ester? Different story entirely. The seal compatibility charts lie – they’ll show Viton as compatible, and it is, technically. But your life expectancy just dropped to 7-9 months instead of 12. Plan accordingly.
Cost Justification for Management
This is the slide you need for the budget meeting:
At the facility I worked with in East Texas, their average unplanned check valve failure cost $8,300 when you factored in the cascade effects. Their scheduled replacement program cost $560 per valve. They had 23 valves on annual replacement. That’s $12,880 per year vs. potentially $190,900 if even half of those failed randomly.
Management approved the program in one meeting.
What to Inspect During Replacement
Don’t just swap the valve. Look at what’s upstream and downstream:
Pulled a check valve last year that looked fine, but the manifold around it had heat discoloration. Turned out they had a pressure-compensated pump that was hunting, and the check valve was getting thermal cycled 40-50 times per minute. Fixed the pump hunting problem, valve life doubled.
Record Keeping Actually Matters
Every valve should have a tag or a log entry:
When you pull it for replacement, note:
This data tells you if you can stretch intervals or if you need to shorten them. One system I worked with had three identical circuits. Circuit A valves lasted 14 months average. Circuit C valves failed at 8 months. Only difference? Circuit C had a 45-degree elbow right upstream of the valve that was creating turbulence. Redesigned the plumbing, problem solved.
The Cartridge vs. Inline Decision
Cartridge check valves are easier to replace – unscrew the old one, screw in the new one, done. But they’re 40-60% more expensive per unit. For systems with more than 8-10 check valves, the inline style makes economic sense if you have the manifold space.
Inline valves require you to break into the circuit, but replacement parts cost less. I typically spec cartridge style for anything that needs more frequent than annual service, inline for annual or longer intervals.
Training the Maintenance Staff
Your technicians need to know what they’re looking at. Had a situation where a tech replaced a check valve and installed it backwards. It’s possible – the ports aren’t always obviously marked. System ran for 6 days, pump failed. $14,000 pump because someone didn’t verify flow direction.
Simple training fix: make them draw an arrow with paint marker on every valve showing flow direction before they pull it. Takes 30 seconds. Prevents expensive mistakes.
