Directional valve hydraulic systems control the flow path of hydraulic fluid to power machinery across construction, agriculture, manufacturing, and other industrial sectors. These valves regulate when fluid moves, where it goes, and at what pressure, enabling equipment to perform tasks like lifting, digging, rotating, and positioning with precision. The core mechanism involves a spool or poppet that shifts position to open or block specific ports, directing pressurized fluid from pumps to actuators like cylinders and motors. This fluid power control makes directional valves essential components in excavators, tractors, robotic systems, and countless other machines that rely on hydraulic force to function.
The working principle centers on controlled fluid pathways. A typical directional control valve contains four to five ports: one receives pressurized fluid from the pump (P port), one returns fluid to the reservoir (T port), and two or more work ports (A and B) connect to hydraulic actuators. When the valve’s internal spool shifts position—triggered by manual levers, electrical solenoids, or pilot pressure—it aligns internal passages to connect specific ports while blocking others.
In a 4/3 valve configuration, the “4” indicates four ports and “3” means three possible positions. The neutral position might block all ports, keeping the actuator stationary. Shifting to one working position connects the pump to port A while routing port B to the tank, causing the actuator to extend. Shifting the opposite direction reverses this flow pattern, making the actuator retract.
Spool valves dominate hydraulic applications because their cylindrical design handles high pressures effectively. The spool has lands (raised sections) and grooves that align with port openings as it slides within the valve body. This sliding motion happens rapidly—often in milliseconds—which is why these valves are sometimes called “bang-bang” valves. The sudden flow changes can create pressure spikes, but proper circuit design with accumulators and cushioning features manages these transients.
Different center conditions serve specific functions. A closed-center valve blocks all ports in neutral, useful when you need to hold a load in position. An open-center configuration lets pump flow return directly to the tank during idle periods, reducing energy consumption with fixed-displacement pumps. Tandem centers unload the pump while blocking work ports, and float centers connect all ports together, allowing free actuator movement.
Construction machinery represents approximately 40% of the directional valve market, driven by excavators, bulldozers, and cranes that depend on multiple hydraulic circuits operating simultaneously. An excavator typically uses 6 to 10 directional control valves managing different functions: boom lift, arm curl, bucket rotation, swing motion, and travel drives. Each valve must handle flows ranging from 50 to 400 liters per minute at pressures up to 350 bar.
The operating environment demands robust valve construction. Construction sites expose equipment to dust, moisture, temperature extremes, and vibration. Valves need sealed solenoids rated to IP67 or IP69K standards and hardened spools that resist wear from contaminated fluid. Mobile hydraulic valves often integrate pressure compensators and load-sensing features that adjust flow based on work requirements, improving fuel efficiency by 15-25% compared to older fixed-flow systems.
Operator control has evolved significantly. Modern excavators use electronic pilot controls where joystick movements generate electrical signals that drive proportional solenoid valves. This replaces mechanical pilot lines and allows customizable control curves, auto-return-to-dig functions, and integration with GPS guidance systems. The directional control valve acts as the interface between electronic commands and hydraulic power, translating milliamp signals into precise fluid flows.
Maintenance considerations in construction applications focus on contamination control and seal integrity. Hydraulic systems in excavators typically require fluid cleanliness levels around ISO 18/16/13, achievable through proper filtration and regular fluid analysis. Directional valve failures often stem from worn seals allowing internal leakage, or contamination particles scoring the spool-to-bore clearances. Preventive programs monitor valve response times and pressure drops to identify degradation before complete failure.
Agriculture accounts for roughly 30% of directional valve demand, with tractors and harvesting equipment requiring multiple hydraulic functions controlled by a central valve bank. A modern tractor might need 3 to 5 spool valves controlling implements like loaders, backhoes, rotary cutters, and three-point hitch positioning. These monoblock valve assemblies stack multiple valve sections together, sharing common inlet and tank ports while providing independent control of each function.
Agricultural applications prioritize versatility since one tractor operates many different implements throughout the year. Quick-connect hydraulic couplers let operators swap attachments in minutes, but the directional control valve must accommodate varying flow demands and pressure requirements. A brush cutter might need continuous flow at moderate pressure, while a post hole auger requires high torque at lower speeds. Pressure-compensated, load-sensing (PCLS) valves automatically adjust to each implement’s needs without operator intervention.
Environmental factors challenge agricultural hydraulic systems differently than construction equipment. Harvest seasons often mean 12-16 hour operating days in hot, dusty conditions with aggressive deadlines. Valve reliability becomes critical when equipment downtime risks crop losses. Manufacturers address this through enhanced filtration, high-temperature seals, and protective covers over valve actuators. Some agricultural valves incorporate self-diagnostic sensors that alert operators to developing issues before they cause failures.
Remote valve operation has gained traction in precision agriculture. GPS-guided tractors performing autonomous field operations need electrically actuated directional control valves that respond to software commands rather than manual levers. This integration allows automated depth control for tillage equipment, precise material application through hydraulically driven spreaders, and coordinated multi-implement operations. The directional control valve becomes a node in the machine’s digital network rather than just a mechanical component.
Manufacturing facilities use directional control valves throughout metalworking presses, plastic injection molding machines, robotic work cells, and material handling systems. These applications demand repeatability and fast cycle times—a hydraulic press might complete 30-60 strokes per minute, each requiring precise valve timing to achieve consistent part quality. Industrial valves operate in relatively clean environments compared to mobile equipment, but face their own challenges around continuous duty cycles and integration with PLCs.
Robotic systems demonstrate the precision possible with advanced directional control valves. A six-axis hydraulic robot arm uses servo or proportional valves that position each joint within 0.1 millimeters. These valves accept 4-20mA analog signals or digital fieldbus commands, modulating flow proportionally rather than switching abruptly. Closed-loop position control reads encoder feedback and adjusts valve openings hundreds of times per second, enabling smooth motion profiles for assembly operations, welding, or material handling.
Energy efficiency drives industrial valve selection since manufacturing operations run continuously and hydraulic power consumption directly impacts operating costs. Load-sensing systems reduce energy use by matching pump output to actual demand rather than running at full pressure continuously. When no machine functions are active, pressure drops to standby levels around 15-30 bar instead of maintaining 200+ bar at full system relief pressure. This can reduce hydraulic power consumption by 30-50% in typical manufacturing duty cycles.
Industry 4.0 initiatives push directional control valves toward smarter functionality. Modern industrial valves incorporate sensors measuring spool position, fluid temperature, flow rates, and operating cycles. This data feeds predictive maintenance algorithms that forecast valve life expectancy based on actual usage patterns rather than fixed intervals. Manufacturing facilities prevent unplanned downtime by scheduling valve maintenance during planned shutdowns identified through condition monitoring.
Oil and gas operations deploy directional control valves in drilling rigs, subsea equipment, pipeline systems, and refinery processes under some of the most demanding conditions. Offshore drilling BOP (blowout preventer) systems use massive directional valves controlling hydraulic cylinders that can close wellbores against pressures exceeding 690 bar (10,000 psi). These safety-critical valves must function reliably after months of inactivity in corrosive seawater environments.
Subsea hydraulic systems present unique challenges since valve failures often require expensive ROV interventions or production shutdowns. Directional control valves for subsea applications receive special qualification testing including pressure cycling, vibration exposure, and extended immersion in seawater. Redundant valve systems provide backup flow paths, and stainless steel or corrosion-resistant materials replace standard carbon steel components. Some subsea directional valves remain submerged for 20+ years between maintenance opportunities.
Pipeline operations use directional control valves in pump stations and valve actuator packages that control mainline shutoff valves. These installations might operate in remote locations with temperatures from -40°C to +60°C and need to function reliably despite infrequent use. Hydraulic systems may sit idle for months, then must operate instantly during emergency shutdown scenarios. Special considerations include arctic-grade hydraulic fluids, heaters for cold weather operation, and extensive testing of valve seals that might otherwise stick during long idle periods.
Refinery and petrochemical processing integrate directional control valves throughout catalyst handling systems, coker drum operations, and process isolation. High-temperature applications expose valves to heated hydraulic fluids up to 120°C, requiring special seal materials and thermal management. Explosion-proof solenoid designs meet ATEX or IECEx certifications for use in classified hazardous areas. Valve maintenance in refineries follows strict permitting and isolation procedures since leaking hydraulic fluid presents fire hazards near process equipment.
Aircraft hydraulic systems depend on highly engineered directional control valves controlling landing gear, flight control surfaces, cargo doors, and thrust reversers. These valves must meet stringent weight, reliability, and performance requirements while operating across extreme temperature and pressure ranges. A typical commercial aircraft uses 15-30 directional control valves throughout its three redundant hydraulic systems, each valve potentially affecting flight safety.
Landing gear systems illustrate aerospace valve requirements. Gear extension and retraction uses directional control valves routing 207 bar (3000 psi) hydraulic pressure to actuating cylinders while managing sequence valves that ensure proper gear positioning before allowing the system to lock. These valves must extend gear reliably even if one hydraulic system fails, incorporate mechanical backups, and prevent inadvertent gear retraction during ground operations. Testing protocols validate valve performance through millions of cycles and extreme environmental exposure before certification.
Flight control systems in larger aircraft use servo valves—a specialized type of directional control valve with exceptionally fast response and precise control. These valves translate pilot inputs into control surface movements with minimal lag, typically responding within 5-10 milliseconds. The valve must provide proportional control with sufficient flow capacity to overcome aerodynamic loads while maintaining accuracy to prevent flutter or control oscillations. Redundant valve channels ensure continued operation if one path fails.
Space applications push directional control valve technology even further. Rocket engine gimbaling systems and satellite deployment mechanisms need valves that function reliably in vacuum, withstand launch vibrations, and operate flawlessly without maintenance opportunities. Some aerospace valves incorporate self-diagnostic features monitoring electrical continuity, valve position sensors, and fluid pressure to confirm proper operation before critical mission phases.
Automotive applications primarily use directional control valves in automatic transmissions, active suspension systems, steering assistance, and convertible top mechanisms. Modern 8 and 10-speed automatic transmissions contain compact valve bodies with numerous spool valves controlling clutch engagement and gear shifts. These valves must operate millions of cycles over the vehicle’s lifetime while meeting strict noise and vibration requirements.
Active suspension systems use fast-acting directional control valves adjusting damping characteristics or actuating hydraulic cylinders that counteract body roll during cornering. These systems require valve response times under 20 milliseconds to react to road conditions and driver inputs effectively. Integration with electronic stability control allows the suspension to pre-adjust before entering a turn based on steering wheel position and vehicle speed inputs.
The shift toward electrification impacts hydraulic systems in vehicles. Electric and hybrid vehicles eliminate engine-driven hydraulic pumps, requiring electrically powered alternatives or replacement of hydraulic systems with electric actuators. However, specialized applications still favor hydraulics—some electric vehicles use hydraulic brake boosters for their progressive feel and fail-safe operation, requiring compact directional control valves that fit within limited underhood space.
Heavy commercial vehicles continue expanding hydraulic system use in cab tilting mechanisms, automated transmissions, and auxiliary equipment. Dump truck hydraulic systems for body lifting need directional control valves handling 300+ liters per minute at pressures around 250 bar. These valves incorporate safety features preventing unintended body lowering and sequence controls ensuring stable operation even with uneven loads.
Marine applications expose directional control valves to saltwater corrosion, high humidity, and constant vibration from engine operation and wave action. Ship steering gear, anchor windlasses, cargo handling cranes, and hatch covers all use hydraulic power controlled by directional valves designed for marine environments. These valves typically use bronze, stainless steel, or corrosion-resistant coatings on all wetted surfaces, with IP68-rated electrical components for waterproofing.
Fishing vessel equipment demonstrates the reliability marine valves must provide. Trawl winches and net reels operate under variable loads in harsh weather conditions, sometimes running continuously during 16-20 hour fishing operations. The directional control valves managing these systems need positive load-holding capability preventing unwanted descent if hydraulic pressure drops, plus smooth control allowing operators to manage delicate operations like net deployment around sensitive seafloor terrain.
Offshore supply vessels serving oil platforms use sophisticated dynamic positioning systems maintaining station-keeping through coordinated thruster control. These installations use multiple directional control valves distributing hydraulic power to tunnel thrusters and azimuth drives, with redundant configurations ensuring position-holding even if components fail. The valves receive constant positioning commands from the ship’s control system, making thousands of small adjustments per hour to counteract wind, waves, and current forces.
Naval applications require directional control valves meeting military specifications for shock resistance, electromagnetic interference protection, and hazardous material compatibility. Aircraft carrier catapult systems and submarine ballast controls represent critical applications where valve failure could compromise mission capability or crew safety. These military-grade valves undergo extensive qualification testing and incorporate built-in redundancy through dual-stage or parallel configurations.
Mining operations use some of the largest mobile equipment in existence—haul trucks with 400-ton payload capacities, electric rope shovels with 100+ cubic yard buckets, and continuous miners cutting through solid rock. The hydraulic systems in this equipment require proportionally massive directional control valves handling hundreds of liters per minute at pressures up to 420 bar (6000 psi). These valves control bucket tilting, boom positioning, vehicle steering, and implement movements critical to mining productivity.
Environmental conditions in mining rival construction sites for severity but add unique challenges. Underground mining exposes equipment to rock dust, water sprays for dust suppression, and limited maintenance access. Surface mining operations in locations like Australia’s Pilbara region subject equipment to temperatures exceeding 45°C and extremely dusty conditions. Directional control valves need robust sealing, effective filtration systems, and designs that allow field repair without removing the entire valve assembly.
Duty cycles in mining are intense. Large excavators might operate 20+ hours daily in multi-shift operations, moving hundreds of thousands of tons monthly. Component reliability directly impacts mine production targets, so valve manufacturers offer predictive maintenance systems tracking cycle counts, operating temperatures, and pressure patterns. This data identifies valves approaching end-of-life before failures occur, allowing planned replacement during scheduled maintenance windows rather than emergency repairs disrupting production.
Automation is transforming mining equipment operation. Autonomous haul trucks operating without drivers need directional control valves that respond to computer commands rather than manual inputs. These systems incorporate redundant solenoids, self-diagnostic capabilities, and fail-safe modes that bring equipment to controlled stops if anomalies are detected. The directional control valve becomes a safety-critical component in the autonomous system architecture, requiring extensive validation testing before deployment.
Warehouses, distribution centers, and manufacturing facilities deploy thousands of forklifts, pallet trucks, and automated guided vehicles that rely on hydraulic forks, masts, and attachments controlled by directional valves. A typical electric forklift uses 2-4 directional control valves managing lift, tilt, and side-shift functions. These valves operate in crowded environments where space constraints demand compact designs, yet must provide smooth, controllable motion for precise load placement.
Dock equipment like vehicle restraints, dock levelers, and trailer lifts use directional control valves in applications combining intermittent operation with safety-critical functionality. A hydraulic dock leveler might cycle only 20-30 times daily but must reliably support 30,000+ pounds when deployed. The directional control valve needs to hold position under static load without drifting, incorporate redundant safety features preventing unexpected lowering, and remain functional despite infrequent use.
Overhead crane systems in manufacturing and warehouse facilities increasingly use hydraulic hoist drives controlled by proportional directional valves. These applications require precise speed control from 0 to 100% capacity, smooth acceleration and deceleration to prevent load swinging, and the ability to hold suspended loads safely. Modern crane controls integrate load-sensing technology where the directional control valve automatically adjusts hoist speed based on load weight, providing consistent operator feel regardless of what’s being lifted.
Battery-powered material handling equipment presents unique considerations for directional control valves. Electric forklifts run from batteries recharged overnight, making energy efficiency critical to operating a full shift on one charge. Electrically powered hydraulic pumps only run when actually raising loads rather than continuously as in engine-driven systems. The directional control valve needs rapid response when pump pressure becomes available and stable control despite variable system pressure as batteries discharge throughout the shift.
Selecting appropriate directional control valves requires matching valve specifications to application demands. Flow capacity represents the first consideration—undersized valves create excessive pressure drop, generating heat and wasting energy, while oversized valves cost more without providing benefits. Actuator speed requirements determine necessary flow rates, typically calculated by multiplying cylinder area by desired extension speed and dividing by volumetric efficiency.

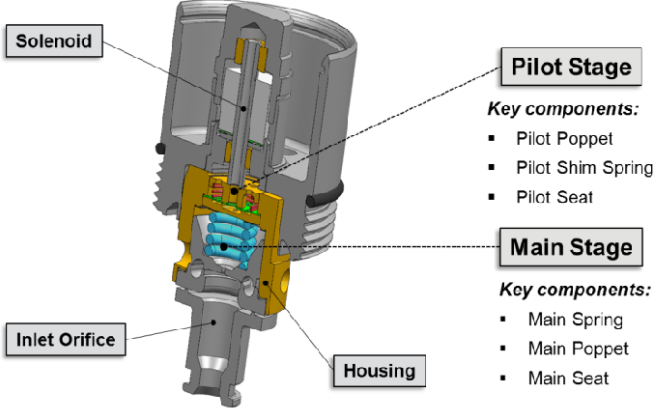

Pressure ratings must exceed maximum system pressure with appropriate safety margins. Mobile equipment commonly operates at 250-350 bar, industrial systems at 150-250 bar, and specialized applications like hydraulic presses might reach 700 bar. The valve’s pressure rating should exceed system relief pressure by at least 25% to provide adequate safety factor. Pilot-operated valves allow smaller solenoids to control large main stage flows by using system pressure itself to shift the main spool.

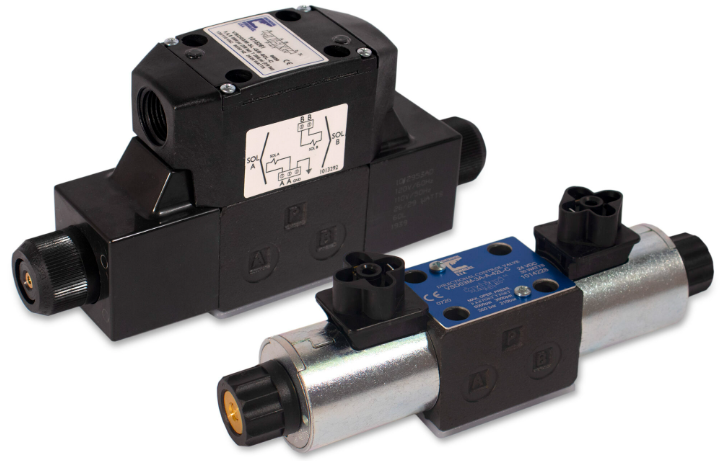

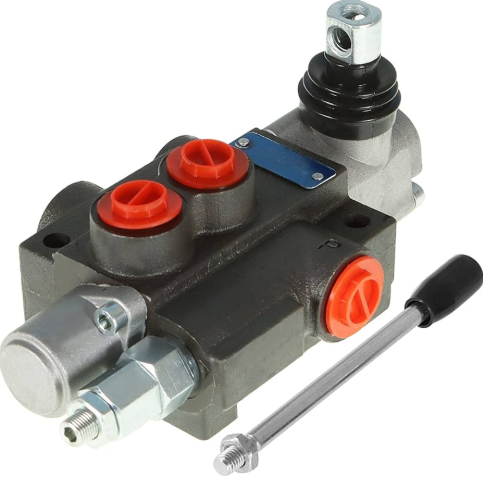

Actuation method depends on control requirements and available electrical power. Manual lever valves suit applications where operators directly control functions with good tactile feedback. Solenoid-actuated valves enable remote operation and integration with electronic controls but require appropriate voltage (12V, 24V, 110V, or 230V) and adequate electrical current. Proportional solenoids provide variable control replacing simple on-off operation, allowing speed adjustment and smooth motion profiles at higher costs.
Center condition selection significantly impacts system behavior and energy efficiency. Fixed-displacement pump systems typically use open or tandem centers allowing pump unloading during neutral, while variable-displacement pumps with pressure compensators suit closed-center configurations. Float centers allow free movement useful in backhoe positioning or tractor three-point hitches. Regeneration centers use oil exhausting from cylinder rod ends to help fill cap ends during extension, increasing speed in applications where load assists motion.
Digital hydraulic technology represents one approach changing how directional control valves operate. Rather than using proportional analog valves with continuously variable positioning, digital systems employ multiple on-off valves switching rapidly to approximate analog behavior. This technology delivers energy savings exceeding 50% compared to traditional throttling valves by minimizing pressure drop losses. Researchers are addressing challenges around achieving smooth motion control and managing switching transients through advanced control algorithms.
IoT integration turns directional control valves into active network participants reporting operational data to maintenance and productivity systems. Embedded sensors track valve actuations, detect abnormal operating conditions, measure fluid contamination, and calculate remaining service life. This connectivity enables condition-based maintenance replacing fixed service intervals, remote diagnostics reducing service calls, and productivity optimization through detailed cycle analysis.
Material advances address durability challenges in extreme environments. Advanced coatings improve corrosion resistance for marine and offshore applications, while ceramic components withstand abrasive contamination better than traditional metals. Composite valve bodies reduce weight in aerospace and mobile applications, and additive manufacturing enables optimized internal passages reducing pressure losses and improving response.
Electrification of mobile equipment is reshaping directional valve applications. Battery-electric excavators and loaders need extremely efficient hydraulic systems since electrical energy storage capacity remains limited compared to diesel fuel. Valve manufacturers are developing designs with minimal leakage, load-sensing systems preventing energy waste, and integration of hydraulic accumulators capturing and reusing potential energy from lowering loads. Some manufacturers explore eliminating hydraulics entirely in favor of electric actuators, though hydraulics’ power density advantages keep it competitive in heavy equipment applications.
The number indicates ports available for fluid connections. A 2-way valve controls simple on-off flow in a single line, suitable for basic functions like engaging a hydraulic motor. A 3-way valve has three ports and typically controls single-acting cylinders where fluid extends the actuator and spring return or gravity retracts it. A 4-way valve is most common in industrial hydraulics, providing bidirectional control of double-acting cylinders or reversible motors by alternately connecting each actuator port to pump pressure or tank return.
Calculate required flow in liters per minute by multiplying the actuator’s bore area in square centimeters by desired speed in centimeters per second, then dividing by 16.67 to convert to liters per minute. Select a valve rated 10-20% above this calculated flow. For example, a 10cm diameter cylinder (78.5 sq cm area) moving at 10 cm/sec requires 47 liters/min, so specify a valve rated 50-55 liters/min minimum. Undersizing causes slow operation and heat generation, while excessive oversizing costs more without benefit.
Contamination causes most directional valve failures. Particles in hydraulic fluid score spool-to-bore clearances, creating leakage paths and making spools stick. Maintaining proper fluid cleanliness through adequate filtration prevents most issues. Seal failures from excessive temperature, incompatible fluids, or wear also reduce valve life. Electrical failures affect solenoid-actuated valves, often from moisture intrusion, over-voltage conditions, or excessive coil temperatures. Regular fluid sampling, temperature monitoring, and electrical system checks extend valve service life.
Most modern directional control valves function properly with biodegradable fluids, but compatibility depends on seal materials. Vegetable oil-based fluids work well with most seals, while some synthetic esters require specific seal compounds. Valve manufacturers provide compatibility charts listing approved fluids for their products. Biodegradable fluids typically have narrower temperature operating ranges and may require more frequent changes than petroleum fluids, but environmental sensitivity in applications like forestry equipment or marine operations makes them appropriate despite higher costs and maintenance requirements.
Directional hydraulic valves demonstrate remarkable versatility across dozens of industries, each adapting this core fluid power control technology to unique demands. The fundamental principle—controlling where hydraulic fluid flows—remains constant whether the application involves a 2-ton mini excavator or a 400-ton mining truck. Manufacturers continue refining these components, pursuing improvements in efficiency, reliability, and intelligent functionality that keep hydraulic systems competitive as equipment technology advances. Understanding how directional valves function and selecting appropriate specifications for each application ensures hydraulic systems deliver the performance industrial operations require.
