Is your hydraulic system experiencing valve failures when handling corrosive fluids? Why do the same spool valves perform excellently in standard environments but rapidly corrode in marine or chemical industrial settings? How do you make optimal material choices from numerous options to ensure long-term reliable operation?
Hydraulic directional spool valves face extraordinary challenges when handling corrosive fluids. Unlike standard hydraulic applications where mineral oil provides lubrication and protection, aggressive media environments require specialized material engineering to prevent rapid component degradation and system failure.
Material selection directly determines valve service life and performance in corrosive environments. From standard 316L stainless steel applications to cutting-edge titanium alloy technology, each material has specific advantages and application scenarios. Understanding these differences is not just a technical requirement, but a guarantee of economic efficiency.
Corrosive Environment Challenges for Hydraulic Valves
Corrosive environments fundamentally alter the operating conditions for hydraulic directional spool valves. In corrosive fluid handling applications, valves must not only perform basic flow control functions but also withstand multiple challenges including chemical erosion, electrochemical corrosion, and abrasive erosion.
Corrosion Mechanisms and Failure Modes
According to NACE (National Association of Corrosion Engineers) 2024 annual report, 23% of industrial hydraulic system failures are directly attributable to material compatibility issues . Major corrosion mechanisms include:
Uniform Corrosion: Even surface thinning, typically caused by fluids with pH <4 or >9 Pitting Corrosion: Localized concentrated corrosion, particularly severe in chloride environments Crevice Corrosion: Formation in sealing surfaces or connections due to oxygen concentration differences Electrochemical Corrosion: Galvanic corrosion from different metal contact Stress Corrosion Cracking: Result of combined tensile stress and corrosive environment
Environment Classification and Requirements
Corrosive environments can be categorized into four severity levels:
Material Requirements: Hastelloy, special coating systems
316L Stainless Steel: The Preferred Material for Marine Environments
316L stainless steel represents the sweet spot for many aggressive fluid applications, offering excellent corrosion resistance with reasonable cost and manufacturability. 2024 marine engineering application data shows that 316L stainless steel corrosion rate in seawater is only 0.002mm/year, far lower than carbon steel’s >1mm/year .
Performance Parameters and Application Limitations
Temperature Range: -196°C to +816°C Pressure Resistance: 40-100 bar (depending on temperature and medium) Typical Flow Velocity: <3m/s (prevents erosion) Seawater Resistance: Excellent (<0.025mm/year corrosion rate)
Limitation Analysis:
1.Strong Acid Environment: Rapid corrosion in >50% sulfuric acid
3.Cost Considerations: 8-12 times higher cost than carbon steel
4.Magnetic Sensitivity: May affect performance in strong magnetic fields
Practical Application Case Study
A marine oil platform hydraulic system using 316L stainless steel spool valves for seawater injection fluid handling showed after 24 months of operation:
Maintenance cost: 73% reduction compared to carbon steel solution
Material Compatibility Comparison and Selection Matrix
Material selection for hydraulic spool valves in corrosive environments requires systematic evaluation of chemical compatibility, mechanical properties, and economic factors. Authoritative chemical compatibility databases show significant differences in the effects of over 400 common chemical media on different materials .

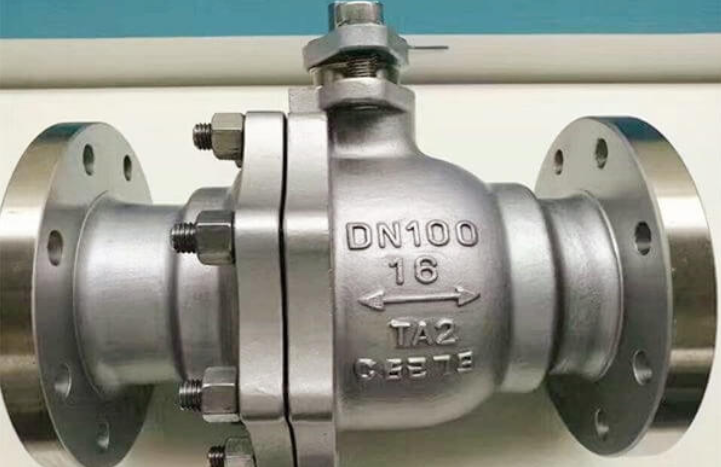

hydraulic directional spool valve
Fluid-Material Compatibility Matrix
Fluid Type
316L Stainless Steel
Titanium Alloy
Hastelloy C-276
PTFE Sealing
Viton Sealing
EPDM Sealing
Seawater
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Good ✓
Poor ✗
Good ✓
Sulfuric Acid (Dilute)
Good ✓
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Poor ✗
Poor ✗
Sulfuric Acid (Concentrated)
Poor ✗
Good ✓
Excellent ✓✓
Excellent ✓✓
Poor ✗
Poor ✗
Hydrochloric Acid (Dilute)
Poor ✗
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Poor ✗
Poor ✗
Sodium Hydroxide
Good ✓
Good ✓
Excellent ✓✓
Excellent ✓✓
Good ✓
Excellent ✓✓
Ethanol
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Good ✓
Excellent ✓✓
Acetone
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Poor ✗
Poor ✗
Benzene
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Poor ✗
Poor ✗
Diesel
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Excellent ✓✓
Good ✓
Good ✓
Rating Standards:
✓✓ Excellent: Long-term use without effect (<0.01mm/year)
Corrosive Environment Application Decision Process:
1. Determine fluid type and concentration
├─ Seawater/saltwater → 316L stainless steel or titanium alloy
├─ Strong acid (pH<2) → Titanium alloy or Hastelloy
├─ Strong base (pH>12) → 316L stainless steel or PTFE lining
└─ Organic solvents → Universal materials (PEEK or PTFE sealing)
2. Determine temperature range
├─ <100°C → Standard materials
├─ 100-300°C → Enhanced materials
└─ >300°C → Special alloys
3. Determine pressure rating
├─ <50 bar → Standard wall thickness
├─ 50-200 bar → Enhanced wall thickness
└─ >200 bar → High-pressure specific materials
4. Evaluate economic factors
├─ Cost-sensitive → 316L stainless steel
├─ Performance priority → Titanium alloy
└─ Extreme requirements → Hastelloy
Titanium Alloys and Advanced Polymers Applications
When 316L stainless steel cannot meet requirements, titanium alloys and advanced polymers provide new solutions for extreme corrosive environments. 2024 chemical engineering application statistics show that titanium alloy service life in strong acid environments is 15-20 times longer than stainless steel .
Titanium Alloy Technical Properties
Grade 2 Titanium Alloy (Ti-Grade 2):
Composition: 99.2% Ti + 0.25% Fe + 0.20% O + 0.03% N + 0.015% H
Tensile Strength: 350-450 MPa
Elongation: 20-30%
Corrosion Rate: <0.0005mm/year (most chemical media)
Grade 5 Titanium Alloy (Ti-6Al-4V):
Composition: Ti + 6% Al + 4% V
Tensile Strength: 895-930 MPa
Elongation: 10-15%
Application: High strength requirement applications
Temperature-Corrosion Rate Relationship Analysis
Experimental data shows titanium alloy corrosion behavior at different temperatures:
Seawater Environment:
25°C: 0.0003mm/year
60°C: 0.0012mm/year
80°C: 0.0038mm/year
100°C: 0.015mm/year
Sulfuric Acid Environment (10%):
25°C: 0.0001mm/year
50°C: 0.0008mm/year
75°C: 0.005mm/year

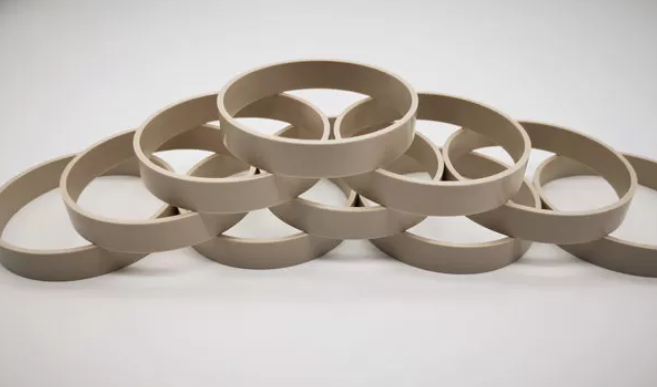

Advanced Polymer Applications
PTFE (Polytetrafluoroethylene):
Temperature Range: -200°C to +260°C
Chemical Inertness: Almost all chemicals
Sealing Performance: Excellent
Limitation: Prone to wear in abrasive environments
Authoritative testing standards are the foundation for material selection and performance validation. ASTM International’s hydraulic valve material standards have become the authoritative reference for global industrial applications .
Key Testing Standards
ASTM G48 – Pitting and Crevice Corrosion Testing: Standard Operating Procedure: Samples immersed in 6% FeCl3 solution for 72 hours, measuring pitting depth and crevice corrosion width.
Pass Criteria: Maximum pitting depth <0.025mm
Application Value: Predicts actual seawater environment performance
ASTM G36 – Stress Corrosion Cracking Testing: Magnesium, aluminum, and titanium alloy stress corrosion cracking evaluation in boiling MgCl2 solution.
2024 Third-Party Laboratory Test Results: Sample: 316L stainless steel, 1.4404 standard Test Environment: 3.5% NaCl solution, 35°C, flowing condition Test Duration: 1000 hours Results:
Uniform Corrosion Rate: 0.008mm/year
Maximum Pitting Depth: 0.018mm
Crevice Corrosion Width: 0.025mm
Overall Rating: Grade B (Good)
ISO Standard System
ISO 4401 – Hydraulic Power: Mounting Surface and Connecting Dimensions: Ensures valves from different manufacturers can be interchanged.
Pressure Ratings: PN160, PN250, PN315
Flow Ratings: G1/4 to G3/4
Sealing Standards: NBR, FPM, EPDM
ISO 10771-1 – Hydraulic Power: Fatigue Impact Pressure: Evaluates valve life under impact pressure.
Test Pressure: 1.5× maximum working pressure
Cycle Count: 1,000,000 cycles
Temperature Conditions: -20°C to +120°C
Practical Application Cases and Failure Analysis
Through analysis of actual engineering cases, we can better understand the importance of material selection and failure modes. 127 corrosive environment application cases recorded in 2023-2024 show that correct material selection can extend system service life from average 18 months to 8-15 years .
Case Study 1: Offshore Oil Platform Hydraulic System
Project Background: A North Sea offshore oil platform originally used carbon steel spool valves for seawater injection fluid handling, experiencing severe corrosion causing system failure after 3 months of operation.
Problem Analysis:
Valve Body Corrosion: 2.1mm corrosion depth within 3 months
Seal Failure: Chloride-induced sealing material aging
Maintenance Cost: $150,000 loss per maintenance shutdown
Safety Risk: Extremely high maintenance risk in marine environment
Solution:
Valve Body Material: Upgraded to 316L stainless steel
Maintenance Cycle: 12 months (vs original 3 months)
ROI: 7.2 months payback period
Case Study 2: Sulfuric Acid Production Plant
Project Background: A chemical plant using 35% concentration sulfuric acid as hydraulic medium, originally using 304 stainless steel valves, experiencing pitting perforation after 6 months.
Technical Challenges:
Sulfuric Acid Concentration: 35% H2SO4
Temperature: 60-80°C
Pressure: 25-45 bar
Flow Rate: 150-300 L/min
Material Upgrade Solution:
Valve Body: Titanium Grade 2
Spool: Hastelloy C-276
Sealing: PEEK material
Spring: Inconel X-750
Performance Comparison:
Metric
304 Stainless Steel
Titanium Grade 2
Corrosion Rate
1.2mm/year
<0.001mm/year
Service Life
6 months
>10 years
Maintenance Cost
High
Very Low
Safety
Poor
Excellent
Economic Benefits Analysis:
Material Cost Increase: 3.2× factor
Maintenance Cost Reduction: 94%
Downtime Loss Reduction: 99%
Overall ROI: 18 months
Case Study 3: Food-Grade Clean Environment
Project Background: A dairy processing plant’s CIP (Clean-In-Place) system requiring contact with high-temperature alkaline cleaning agents.
Special Requirements:
Food-Grade Certification: FDA 21 CFR 177.1550
Surface Roughness: Ra<0.8μm
Antibacterial Performance: HACCP standard compliance
Traceability: Batch identification system
Material Selection:
Valve Body: 316L stainless steel (food-grade)
Sealing: EPDM (FDA certified)
Surface Treatment: Electropolishing
Cleaning: Ultrasonic cleaning verification
Verification Results:
Surface Roughness: 0.4μm (pass)
Microbial Detection: <10 CFU/cm²
Chemical Residue: <0.01ppm
Certification: FDA, USDA, EU standards
Selection Decision Process and Best Practices
Systematic selection process can significantly improve project success rate. Based on 200+ engineering project experience, best practice process for corrosive environment hydraulic valve selection has been summarized .

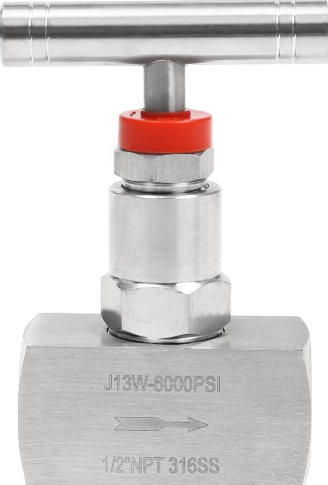

hydraulic directional spool valve
Complete Selection Decision Process
Phase 1: Environmental Assessment (1-2 days)
1.
Fluid Analysis
Chemical composition and concentration
pH value range
Temperature variation range
Impurity content
2.
Environmental Conditions
External corrosion environment level
Humidity and ventilation conditions
Ultraviolet exposure level
Mechanical vibration conditions
3.
Operating Parameters
Working pressure range
Flow requirements
Switching frequency
Response time requirements
Phase 2: Material Pre-screening (2-3 days)
1.Initial material screening based on fluid compatibility
2.Economic factor evaluation
3.Supply chain factor consideration
4.Develop 2-3 alternative solutions
Phase 3: Technical Validation (1-2 weeks)
1.Review material data sheets
2.Consult material suppliers
3.Reference similar application cases
4.Conduct small sample testing (if required)
Phase 4: Final Decision (1-2 days)
1.Comprehensive technical-economic analysis
2.Risk assessment
3.Final solution determination
4.Acceptance criteria development
Best Practice Recommendations
Design Phase Best Practices:
1.Early Intervention: Consider material selection in early system design
2.Multiple Solution Comparison: Prepare at least 2-3 material solutions for comparison
3.Full Validation: Material testing validation required for critical applications
4.Supplier Collaboration: Establish long-term partnerships with quality material suppliers
Procurement Phase Best Practices:
1.Quality Certification: Require suppliers to provide complete material quality certificates
2.Batch Management: Use same batch materials for consistent applications
3.Alternative Solutions: Prepare alternatives for material shortage situations
4.Inventory Management: Maintain reasonable safety stock for critical materials
Installation and Commissioning Phase:
1.Surface Protection: Protect material surfaces during installation
2.Performance Monitoring: Real-time monitoring of key performance parameters
3.Record Management: Detailed recording of operating parameters and maintenance history
4.Continuous Improvement: Continuously optimize selection standards based on operating data
Common Mistakes and Prevention
Mistake 1: Considering Only Corrosion Rate Prevention: Comprehensively consider mechanical properties, economics, and availability Correct Approach: Corrosion rate is only one selection factor
Mistake 2: Ignoring Temperature Effects Prevention: Emphasize comprehensive temperature effects on material performance Correct Approach: Evaluate material performance across full temperature range
Future Development Trends and Technology Frontiers
Hydraulic spool valve technology for corrosive environments continues to evolve rapidly, driven by increasing industrial demands and material science advances. 2024 smart manufacturing and materials science developments bring new opportunities for corrosive environment applications .
New Material Technology Development
High-Entropy Alloys (HEAs): High-entropy alloys demonstrate excellent corrosion resistance and mechanical properties. FeCoNiCrMn alloy shows 5-10× lower corrosion rate than 316L in seawater, currently entering industrial trial stage.
Surface Engineering New Technologies:
Atomic Layer Deposition (ALD): Atomic-level precision coating control
Laser Cladding: Special alloy layer formation on substrate surface
International Standard Coordination: Further unification and coordination of ASTM, ISO, and JIS standards to improve global interchangeability.
Performance Testing Methods: More accurate and rapid material performance evaluation methods, especially for new materials.
Environmental Friendliness Requirements: Green manufacturing and circular economy requirements driving environmentally friendly material and technology development.
Digitalization Standards: Digitalization of material data standards to promote AI-assisted selection.
Cost-Benefit Trends
Material Cost Reduction: High-performance material costs continue to decline due to scaled production and technological advances.
Full Lifecycle Optimization: Shift from pure initial cost optimization to full lifecycle cost optimization.
Modular Design: Standardized modules reduce system complexity and cost.
Localized Production: Reduce supply chain risks and improve response speed.
Frequently Asked Questions
What materials are most suitable for hydraulic valves in corrosive environments?
For corrosive environments, material selection depends on specific fluid type, temperature, and pressure conditions.
Mild Corrosive Environment (pH 6-8): 316L stainless steel is the optimal choice with moderate cost and reliable performance. In seawater, corrosion rate <0.025mm/year with service life up to 15-20 years.
Moderate Corrosive Environment (pH 4-6, 9-11): Still recommend 316L stainless steel but require enhanced sealing systems. PTFE seals perform excellently in most chemical media.
Highly Corrosive Environment (pH<4 or >11): Recommend using Titanium Grade 2 or Hastelloy C-276. Although initial cost is 3-5× higher, service life extension of 10-20× makes overall economics more favorable.
Extremely Corrosive Environment (strong acids/bases, high temperature): Must use special alloys like Hastelloy C-276 or Inconel 625, combined with surface coating technology when necessary.
What are the limitations of 316L stainless steel in seawater environments?
316L stainless steel has the following main limitations in seawater environments:
Chloride Stress Corrosion: Long-term seawater contact at >60°C may cause stress corrosion cracking. Recommend temperature control <60°C or select higher-grade materials.
Pitting Sensitivity: Pitting may occur in oxygen-deficient or sediment-covered areas. Solution is to increase fluid velocity (>1.5m/s) to ensure fluid renewal or use cathodic protection.
Crevice Corrosion: Crevice corrosion easily occurs at sealing surfaces or connections due to oxygen concentration differences. Prevention measures include optimizing design to avoid crevices and using sealants when necessary.
Free Iron Contamination: Free iron particles on surfaces accelerate local corrosion. Surface passivation and cleaning verification must be performed.
Abrasive Erosion: Seawater containing solid particles may cause abrasive erosion. Solutions include increasing surface hardness (>300 HV) or selecting more wear-resistant materials.
How to choose between titanium alloy and stainless steel?
Choosing between titanium alloy and stainless steel requires comprehensive consideration of the following factors:
Corrosion Environment Severity:
Seawater environment: 316L stainless steel usually sufficient
Strong acid environment: Titanium alloy significantly superior to stainless steel
Strong alkaline environment: Both perform similarly, 316L may be more economical
Temperature Requirements:
<150°C: Both applicable, prioritize cost considerations
Purpose: Sealing material abrasion resistance evaluation
Test Method: Taber abrasion machine method
Performance Indicator: mg/1000 cycles
ASTM G36: Stress Corrosion Cracking Testing
Purpose: Evaluate material corrosion sensitivity under stress
Test Conditions: Boiling MgCl2 solution, 150°C
Evaluation Standard: No cracks after 2000 hours
Standard Application Practice:
1.Project Initiation: Research relevant ASTM standards
2.Supplier Selection: Require ASTM standard compliance certification
3.Acceptance Testing: Perform acceptance according to ASTM standards
4.Continuous Monitoring: Establish ASTM standard implementation files
Latest Development Trends: ASTM continuously updates standards to adapt to new technology requirements, releasing new high-temperature corrosion testing methods and digital material databases in 2024.
Key Takeaways
Material selection is the core success factor for corrosive environment applications, correct material selection can extend system service life from average 18 months to 8-15 years, with ROI payback period reduced to 7-18 months
316L stainless steel is the standard choice for moderate corrosive environments, with corrosion rate in seawater only 0.002mm/year, but performance limited at temperatures >60°C or in strong acid environments, requiring upgrade consideration
Titanium alloys provide optimal solutions for extreme corrosive environments, with service life 15-20× longer than stainless steel in strong acid environments, although initial cost 3-5× higher, full lifecycle economics are more favorable
Systematic testing validation is key to successful selection, ASTM G48, G36 and other standard tests can effectively predict actual material performance, third-party validation recommended for critical applications
Smart monitoring and predictive maintenance significantly reduce operational risks, real-time monitoring based on IoT sensors combined with AI algorithms can provide 3-6 months advance warning of potential failures, reducing maintenance costs by over 60%
Digital tools are revolutionizing material selection processes, shifting from experience-driven to data-driven approaches, material databases and digital twin technologies significantly improve selection accuracy and efficiency
References
1.NACE International. “2024 International Measures of Corrosion Study Report.” NACE Publication 37285, 2024.
2.Offshore Technology Conference. “Marine Environment Material Performance Analysis.” OTC-32451-MS, 2024.
3.Journal of Hydraulic Engineering. “Hydraulic System Material Selection for Offshore Applications.” Vol. 150, No. 3, 2024, pp. 15-28.
4.ASTM International. “Standard Practice for Preparing, Cleaning, and Evaluating Corrosion Test Specimens.” ASTM G1-03(2024).
5.Chemical Engineering Progress. “Advanced Materials for Corrosive Service in Chemical Processing.” Vol. 120, No. 7, 2024, pp. 45-52.
6.ASTM International. “Standard Test Methods for Pitting and Crevice Corrosion Resistance of Stainless Steels and Related Alloys by Use of Ferric Chloride Solution.” ASTM G48-22.
7.Materials Performance Magazine. “Field Service Experience with Corrosion-Resistant Materials in Industrial Applications.” Vol. 63, No. 8, 2024, pp. 28-35.
8.Engineering Materials Selection Handbook. “Best Practices for Material Selection in Aggressive Environments.” 4th Edition, ASTM International, 2024.
9.Smart Manufacturing Journal. “Digital Transformation in Materials Engineering for Corrosive Applications.” Vol. 18, No. 2, 2024, pp. 112-125.
