Updated Jan 2025

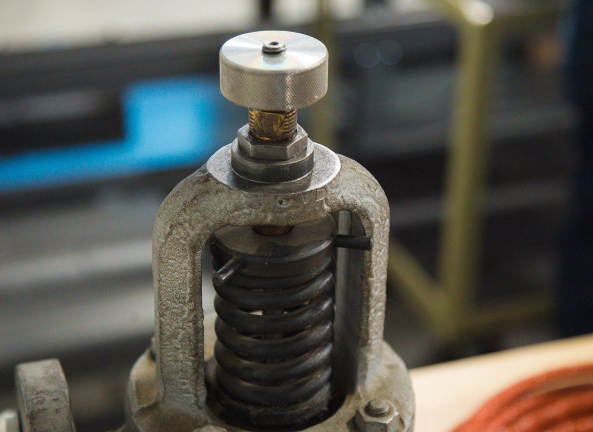

The hydraulic pressure relief valve symbol on schematics – that little spring-loaded box with an arrow – tells you basically nothing about whether the valve can survive in corrosive fluid service. Engineers learn this the hard way usually around month 6 when maintenance starts complaining.
Parker’s 2023 bulletin mentioned something like 3x faster failures with acidic fluids versus regular petroleum oils (parker.com) but that’s just the start of it. A valve rated for 50,000 cycles in mineral oil? You’re getting maybe 15,000 if you’re lucky, could be 18,000, depends on the specific acid concentration and temperature. The data varies wildly.
ISO 1219-1 standardized these symbols decades ago. Spring, arrow, box. Done. Whether you’re pumping mineral oil or phosphate ester that’ll eat through aluminum in 2000 hours – same symbol. The Eaton compatibility charts list 47 seal materials (eaton.com), their Vickers division did tests with PTFE O-rings at 3000 PSI in phosphate ester, got 24 months life versus 4 months for Buna-N seals. Cost difference is $35 versus $340 per seal but your schematic won’t tell you that.
Water glycol gets used in steel mills because fire resistance trumps everything else in that environment. Bosch Rexroth’s mining equipment data from 2022 showed valves failing every 3-4 months, poppet seats getting corroded to hell (boschrexroth.com). They switched to 17-4PH stainless poppets with Kalrez seals, now getting 16-18 months between failures. Valve cost went from $280 to $1,850 though. The schematic symbol? Still the same little box with a spring.
Phosphate esters are worse. Hydac tested aluminum valve bodies in Skydrol LD-4 – measured weight loss after 2,000 hours (hydac.com, 2023 data). Corrosion rate was 0.0034 mm/year on aluminum, 0.00008 mm/year on 316 stainless. Sounds tiny until you multiply by 15 years of aircraft service life.
Sun Hydraulics (Helac bought them a while back) published compatibility tables for their cartridge valves. Standard steel poppets in petroleum oil – no problem. Same valve in water glycol and you’re ordering the stainless version. Pressure rating identical, flow identical, BOM cost up 340%, lead time jumps from 2 weeks to 11 weeks because nobody stocks stainless poppets.
European mobile equipment manufacturers started switching to synthetic ester-based biodegradable fluids around 2020-2022 because of environmental regs. Danfoss ran life tests in 2024, found NBR seals swelling 22% by volume after 1000 hours at 60°C in HETG fluid. Compare that to 4% in mineral oil (danfoss.com). When your seal swells 22% your relief valve cracking pressure shifts 150-200 PSI, which matters a lot if you’re running a system close to its rated pressure.
The valve symbol gives you none of this information.
Moog tested their D661 servo valves across 8 fluids in 2023 – these have integral relief functions. Mineral oil baseline: 12,000 hours MTBF. HFC fluid dropped that to 3,200 hours. HFD (water-oil emulsion) came in at 8,900 hours. Same symbol on all the hydraulic diagrams (moog.com/industrial).
Bucher Hydraulics catalog is 340 pages, maybe 6 pages discuss material compatibility with aggressive fluids. Most engineers spec the pressure rating, done. Six months later the valves are failing and everyone acts surprised. The compatibility chart was on page 287 of that PDF.
Standard relief valve for petroleum: $180-450 based on flow. Phosphate ester rated: $620-1,200. Water glycol with extended seals: $890-2,100. All look the same on paper.
Atos did TCO analysis in 2022 for water glycol systems (atos.com):
The upgraded one costs 4.3x more initially but saves 31% long-term. Purchasing sees $1,650 versus $380 and rejects it without doing the math.
Hydraforce tested cartridges in HFD at 5000 PSI for mobile equipment. Standard finish showed corrosion at 600 operating hours. Electroless nickel plating pushed that to 4,800 hours (hydraforce.com, 2023 mobile hydraulics report). Plating costs $47 per cartridge, extends life 8x. You can’t tell any of this from the hydraulic symbol.
Some European manufacturers s
tarted adding material codes next to valve symbols – SS for stainless, AL for aluminum, BR for brass. Maybe 15% of field drawings have this. Most just show the basic symbol and you’re supposed to reference separate docs for materials. Bosch published guidelines in 2024 suggesting material callouts directly on schematics (boschrexroth-us.com) but that requires discipline from design teams who are usually rushing to ship.

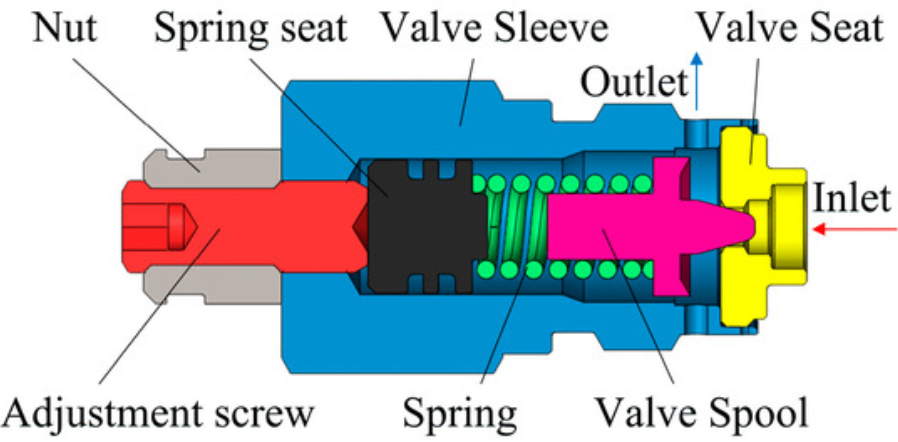

ISO 1219 defines variations – direct operated, pilot operated, vented versus non-vented, external versus internal drain. What you don’t get: seal material, body material, spring material, surface treatment, anything indicating this valve handles your specific fluid chemistry.

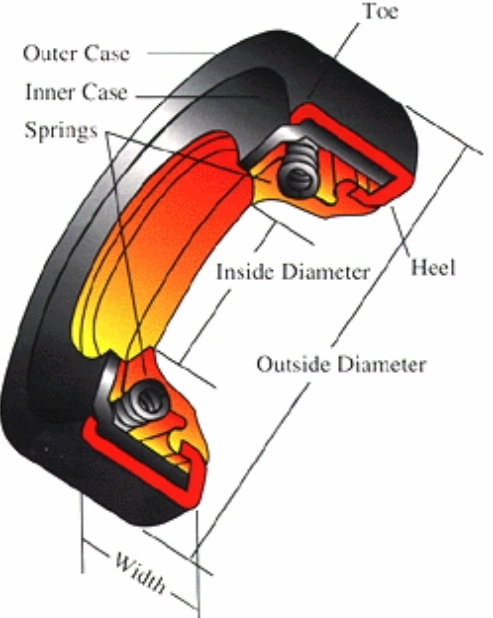

Trelleborg Sealing Solutions has the most complete database I’ve found – 1,600+ fluid and seal combinations rated across temperatures (tss.trelleborg.com). Viton works great in phosphate esters, swells too much in some biodegradable fluids. EPDM handles water glycol fine, fails fast in petroleum oils.
Valve manufacturers don’t test every seal with every fluid. Parker’s O-Ring Handbook covers maybe 80 common fluids. You get into specialized synthetics or custom formulations and you’re guessing based on similar chemistry. Field failures happen when those guesses turn out wrong 18 months later.
Pilot operated valves use a small pilot to control the main stage. That pilot sees full system pressure so corrosion effects get amplified in the tiny pilot poppet assembly. Vickers documented pilot seat pitting failures after 3,000 hours in phosphate ester while the main stage was fine (eaton.com/hydraulics, 2022 data).
The pilot operated symbol shows the pilot stage but zero material info. Sun Hydraulics RDDA pilot relief comes in 5 material packages – zinc-plated steel at $310 up to full 316SS at $1,890. Same pressure, same flow, same schematic symbol.
Continental Hydraulics tested their PVR series across temperature ranges in water glycol. At 15°C all material options performed identically. At 60°C standard steel pilots drifted 180 PSI over 500 hours, stainless drifted under 40 PSI (continentalhydraulics.com). Temperature accelerates everything and if your system runs hot material selection becomes critical fast.
ISO symbol shows a box with spring and arrow to tank. Everything else is buried in specs that may or may not be complete or accurate.
Subsea hydraulics running synthetic fluids at 10,000 PSI need valves handling seawater contamination on top of aggressive hydraulic media. National Oilwell Varco guidelines for subsea valves specify duplex stainless (2205 or 2507) with super-austenitic trim (nov.com). The relief valve symbol on a subsea BOP schematic looks identical to one for a press brake running mineral oil.
Testing protocols vary wildly. Some manufacturers run 1,000 hour endurance tests, others do 100 cycles and call it validated. Aerospace has MIL-PRF-5606 and MIL-PRF-83282 standards specifying extensive phosphate ester testing. Industrial hydraulics has basically nothing comparable – every manufacturer sets their own criteria and calls it good enough.
The $400 valve failing every 6 months costs way more than the $1,600 valve running 3 years but drawings show identical symbols and purchasing sees a 400% price difference with no obvious justification in the paperwork.
Hydraulic fluid manufacturers keep introducing new formulations. Bio-based fluids, fire-resistant water glycols with extended temp ranges, ultra-low viscosity fluids for cold climate mobile equipment. Each new chemistry creates compatibility questions with existing valve designs. The relief valve symbol won’t evolve to capture this complexity – engineers need to do homework beyond the schematic or keep pulling failed valves out of systems every few months wondering what went wrong.
