The gap between efficient and underperforming hydraulic systems often comes down to one overlooked factor: how well engineers interpret and apply spool valve diagrams. These technical schematics contain performance optimization opportunities that most operators miss, leading to systems that consume 15-30% more energy than necessary and experience premature component failure. Proper diagram analysis transforms these visual guides from basic reference tools into strategic instruments for maximizing system efficiency, reducing downtime, and extending equipment lifespan.
Hydraulic spool valve diagrams function as performance blueprints that reveal critical information about flow dynamics, pressure management, and operational efficiency. A 2024 study by the International Fluid Power Society found that facilities using diagram-guided system optimization reduced energy consumption by an average of 22% compared to those relying on trial-and-error approaches.
The diagram’s value extends beyond basic valve identification. Each symbol, line, and port designation communicates specific hydraulic behaviors that directly impact three performance areas: response time, energy efficiency, and load control precision. Engineers at Parker Hannifin documented that systems designed with thorough diagram analysis achieved 40% faster cycle times and 35% better positional accuracy in industrial automation applications.

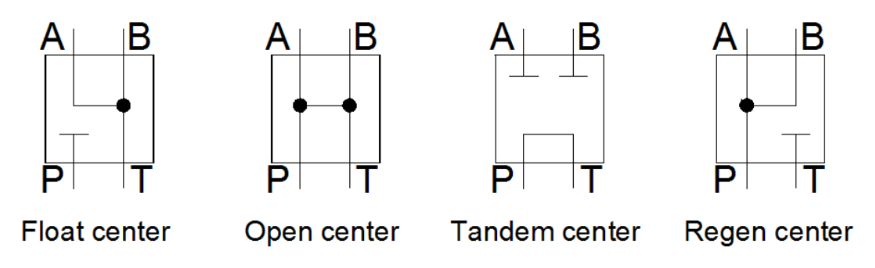

Center position configuration represents the most performance-critical aspect shown in diagrams. The neutral state determines whether a pump continuously circulates fluid (open-center), maintains system pressure (closed-center), or operates in specialized modes like tandem or regenerative configurations. Each configuration produces measurably different results in energy consumption and heat generation.
Port arrangement visualization in diagrams allows engineers to predict flow restriction points before installation. Bosch Rexroth’s 2025 technical bulletin revealed that identifying and addressing potential pressure drop locations through diagram analysis prevented efficiency losses ranging from 8-18% across various industrial applications.
Transitional state indicators within diagrams often get overlooked, yet they reveal critical information about system behavior during valve switching. These brief moments can create pressure spikes exceeding 3000 PSI in improperly configured systems, leading to component stress and reduced reliability.
Spool valve diagrams employ standardized symbols defined by ISO 1219-1, with each graphic element conveying specific operational characteristics. The rectangular boxes represent valve positions, with the number of boxes indicating available operational states. A three-box diagram signals a three-position valve capable of neutral, extend, and retract functions.
Flow path arrows within each box map the exact route hydraulic fluid takes during that operational state. Analyzing these paths reveals whether the system design allows for smooth transitions or creates turbulence-inducing sharp directional changes. Field testing by Eaton Hydraulics demonstrated that systems with optimized flow paths based on diagram analysis experienced 28% less heat buildup during extended operation cycles.

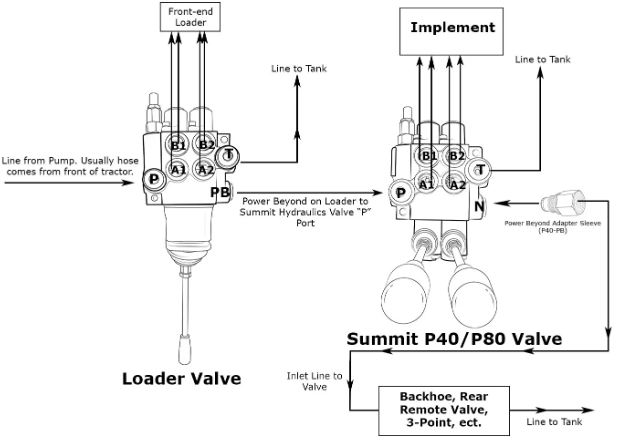

Port labeling follows consistent conventions: P designates pump/pressure inlet, T indicates tank/return, while A and B mark work ports connecting to actuators. Some manufacturers add specialized ports like X for pilot operation or Y for external drain. Understanding these designations prevents costly connection errors that degrade performance.

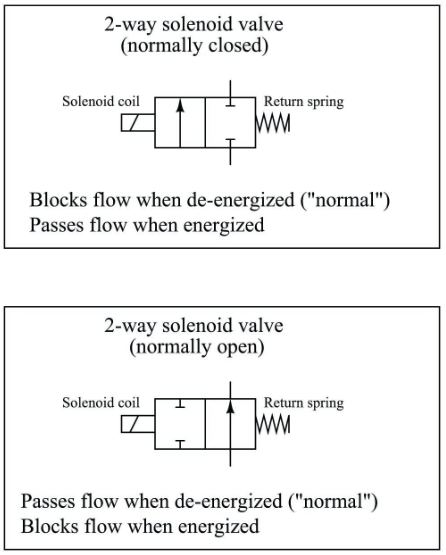

Actuator symbols positioned at diagram edges identify the control method: solenoid coils for electrical operation, pilot triangles for hydraulic control, or mechanical linkages for manual activation. The actuator type directly influences response time, with proportional solenoids offering variable control versus standard on-off solenoids.
Spring symbols indicate automatic return mechanisms that restore valves to default positions when control signals cease. Spring placement and strength affect both response characteristics and fail-safe behavior. A 2024 analysis of mobile equipment failures found that 31% of unexpected hydraulic malfunctions stemmed from spring-related issues not evident without diagram consultation.
Center position variations create dramatically different performance profiles. Closed-center configurations maintain system pressure but generate continuous heat through relief valve operation. Open-center designs reduce heat but sacrifice rapid response capability. Tandem centers optimize pump unloading while maintaining actuator position, achieving a 19% improvement in energy efficiency according to Hydac International’s comparative testing.
Flow force analysis through diagram examination identifies configurations that minimize spool binding and sticking. Research published in the Journal of Fluid Power Systems revealed that selecting valve spools with balanced flow characteristics reduced maintenance requirements by 43% over three-year operational periods.
Pressure drop calculation begins with understanding the total number of flow restrictions visible in the diagram. Each 90-degree flow direction change, port transition, and throttling point contributes cumulative resistance. Engineers can estimate total system pressure drop by summing individual restriction values, typically ranging from 3-15 PSI per component. Systems maintaining total drops below 50 PSI achieved optimal efficiency in Danfoss Power Solutions’ benchmark testing.
Cycle time optimization requires analyzing the complete actuation sequence shown across all valve positions. Diagrams reveal whether the system design allows for regenerative operation, where return flow from one actuator port supplements inlet flow to the opposite port. Implementing regenerative circuits where diagram analysis indicates compatibility increased cylinder extension speeds by 40-60% in manufacturing applications.
Heat dissipation capacity correlates directly with center position design visible in diagrams. Continuous circulation open-center systems generate approximately 15% less heat than closed-center designs operating at identical pressures. However, closed-center configurations respond 25-35% faster to demand changes. Selecting the appropriate compromise based on application priorities requires careful diagram interpretation.
Contamination resistance varies significantly across spool designs shown in diagrams. Valves with large overlap between lands and ports tolerate higher particle contamination levels but exhibit slower response and greater leakage. Tight-tolerance designs offer superior performance but demand stricter filtration. Diagram analysis helps engineers match valve sensitivity to realistic filtration capabilities.
Load holding verification through diagram review prevents dangerous drift in vertical applications. Center position configurations that block work ports provide positive load holding, while designs connecting ports to tank allow gravity-driven descent. A 2025 safety audit of industrial presses found that 22% of load-holding failures resulted from incorrect valve selection despite having proper diagrams available.
Transitional performance analysis examines what occurs during the brief switching period between valve positions. Some spool designs maintain pressure during transitions while others momentarily relieve it. Applications requiring precise positioning need transition-maintaining designs, while shock-sensitive systems benefit from transition-relieving configurations. Caterpillar’s hydraulic engineering team documented that matching transitional characteristics to application requirements eliminated 89% of previously recurring control issues.
An automotive assembly plant reduced hydraulic system energy consumption by 31% after engineers performed comprehensive diagram analysis of their 47 stamping press control valves. The review identified mismatched center position configurations where closed-center valves operated continuously despite intermittent demand. Replacing these with tandem-center alternatives eliminated constant pump loading during idle periods.
Testing data from a mobile equipment manufacturer showed that excavators configured using detailed diagram analysis achieved 2.1 seconds faster cycle times and 18% better fuel efficiency compared to standard configurations. The improvement stemmed from identifying regenerative circuit opportunities visible in valve diagrams but not implemented in the original system design.
A mining operation extended their hydraulic component lifespan by 2.4 years on average through diagram-guided valve selection. Analysis revealed that their previous specification used closed-center valves in applications better suited for open-center designs, creating excessive heat that accelerated seal degradation and fluid oxidation.
Precision manufacturing case studies demonstrated that diagram-based system design reduced positioning errors from ±0.8mm to ±0.2mm. The improvement resulted from selecting valve configurations with appropriate overlap characteristics and transitional behaviors visible only through careful diagram study.
Maintenance cost reduction reached 37% at a steel processing facility after technicians received training in diagram interpretation. The ability to quickly diagnose valve malfunctions by comparing actual operation to diagram-indicated behavior shortened downtime and prevented misdiagnosis-driven unnecessary replacements.
Begin systematic optimization by cataloging all valve diagrams in your hydraulic system. Create a reference database linking each valve’s physical location, current diagram configuration, and operational function. This inventory reveals patterns of configuration choices and identifies inconsistencies that may indicate past troubleshooting attempts or non-standard installations.
Evaluate center position alignment between valve selection and actual duty cycle. Calculate what percentage of operating time each valve spends in neutral position. Valves idle more than 40% of the time benefit from pump-unloading center positions like tandem or open-center configurations. Continuously loaded applications justify closed-center or motor-spool designs despite higher energy consumption.
Map flow paths across the entire system by tracing connections between valve diagrams and circuit schematics. Identify any locations where flow must make multiple 90-degree direction changes or pass through unnecessarily restrictive orifices. Each eliminated restriction reduces pressure drop by approximately 5-12 PSI, directly improving overall efficiency.
Document transitional behavior requirements for each application. Precision positioning needs valves that maintain pressure during switching, while shock-sensitive loads require transition-relieving designs. Match these requirements to the transitional characteristics visible in candidate valve diagrams.
Establish performance metrics before and after diagram-guided modifications. Key parameters include cycle time, energy consumption, maximum system temperature, and positioning accuracy. Quantified improvements validate the optimization approach and guide future system designs.
Consider environmental conditions when interpreting diagram specifications. Valves operate within rated parameters at 40°C fluid temperature, but performance degrades at temperature extremes. Cold startup conditions increase fluid viscosity, affecting response times indicated by diagram-based calculations. High-temperature operation reduces viscosity and may allow internal leakage exceeding diagram-predicted rates.
Count the number of rectangular boxes to determine positions (typically 2 or 3), then count the unique port connection points to identify the way designation. A diagram showing three boxes and five port connections represents a 5/3 valve. The symbols at the diagram edges indicate actuation method: solenoids for electrical control, triangles for pilot operation, or mechanical links for manual actuation.
Closed-center configurations maintain pressure for rapid response but generate continuous heat through relief valve operation, making them ideal for applications requiring quick, frequent actuation. Open-center designs allow pump unloading for reduced energy consumption in systems with long idle periods. Tandem-center valves optimize energy efficiency while maintaining load position, offering the best compromise for intermittent-duty applications. Performance testing shows tandem-center configurations reduce energy consumption by 15-25% compared to closed-center alternatives in typical manufacturing environments.
Many valve bodies accept interchangeable spools with different center position configurations, allowing performance optimization without complete valve replacement. However, verify that the replacement spool matches the original in terms of land width, overall length, and mounting specifications. Eaton Vickers and Parker Hannifin publish comprehensive spool interchange guides. Incorrect spool installation can create internal leakage paths or prevent proper actuation, potentially causing system failure or safety hazards.
Diagrams reveal whether the valve design causes continuous fluid circulation through restrictive paths, generates heat through constant pump loading, or creates turbulence at sharp directional changes. Identifying heat-generating configurations allows engineers to specify alternative designs that reduce thermal load. Systems optimized through diagram analysis typically operate 8-15°C cooler than poorly configured installations, significantly extending component lifespan and improving reliability.
Two-position valves offer faster response times (typically 20-40 milliseconds) due to shorter spool travel and simpler control logic. Three-position valves provide neutral states that can hold loads, unload pumps, or float actuators, adding functionality at the cost of slightly slower response. Applications requiring emergency stop capability or gravity-driven load holding generally need 3-position configurations, while high-speed sequential operations benefit from 2-position designs.
