The key to systematic component selection and performance optimization lies in deeply understanding the synergistic working mechanism between spool components and the entire hydraulic circuit, rather than focusing solely on individual part specifications.
Through systematic analysis of 2024-2025 industrial hydraulic system integration data, leading companies have established standardized selection processes based on component compatibility matrices, significantly reducing system failure rates and improving overall operational efficiency by 23%1. This framework approach requires engineers to consider deep integration of spool components with pressure control and flow regulation systems during the design phase, rather than reactive adjustments later.
Hydraulic spool components serve as core execution elements controlling fluid direction and pressure. Their functional design directly impacts system response speed, control precision, and reliability. Through precision-machined cylindrical surfaces with relative movement to valve body bores, spool components achieve flow path opening/closing and flow distribution, precisely controlling actuator movement characteristics2.
In modern industrial applications, spool components must simultaneously meet multiple technical requirements: first, pressure sealing performance, typically operating at 3000-5000 PSI with zero-leakage requirements; second, response speed, with modern systems requiring spool switching times of 50-200 milliseconds; finally, durability design, with typical industrial spools needing to withstand over 100,000 complete work cycles3.
Precision machining processes for spool surfaces include grinding, polishing, and surface hardening treatments, with surface roughness requiring Ra 0.1-0.2 micrometers to ensure proper cooperation with seals. Material selection typically uses carburized steel or stainless steel for high-end spools, achieving HRC 58-62 hardness to guarantee wear resistance while maintaining necessary toughness to handle impact loads.
Key design parameters include spool diameter tolerance (±0.001 inches), surface hardness gradient control, and radial clearance design with valve body bores (typically 0.0005-0.002 inches). These factors collectively determine system control precision and response characteristics. In practical engineering applications, spool component performance optimization requires synchronized consideration with overall system design. CFD fluid simulation analysis can pre-evaluate the influence of spool geometry on flow field distribution4.
From a manufacturing perspective, spool component consistency directly relates to batch production system performance stability. Advanced CNC machining centers utilize closed-loop control systems to maintain key dimension tolerances within ±0.0003 inches, ensuring interchangeability of spool components in mass production. Quality control processes include coordinate measuring, hardness testing, and surface roughness testing, ensuring each spool meets strict industrial standards.
System integration is the key to maximizing hydraulic spool component value. Compatibility design involves not only mechanical interface matching but also multi-dimensional coordination including pressure, flow, temperature, and medium characteristics. System-level integration methodology requires comprehensive consideration of interactions between components from overall design perspective, establishing optimization frameworks based on mathematical models5.
Pressure compatibility represents the most fundamental technical requirement. The rated working pressure of spool components must maintain appropriate safety margins with system peak pressure, typically recommending rated pressure at 1.25-1.5 times the maximum system operating pressure. Simultaneously, the pressure drop characteristics of internal spool flow paths need to match system backpressure design to avoid excessive pressure losses.
Flow compatibility involves port selection and flow path design for spools. Standard calculation methods base on system-required peak flow, considering 20-30% design margins. Insufficient port diameter causes excessive pressure losses, while oversized ports affect control precision and response speed. In engineering practice, system simulation software pre-evaluates the impact of different spool port diameters on system performance6.
Temperature compatibility is often overlooked but extremely important. The linear expansion coefficient of spool materials needs to match the system operating temperature range, avoiding jamming or leakage due to thermal expansion and contraction. Modern industrial systems typically operate within -40°C to +120°C ranges, requiring spool design to maintain stable performance within this range.
Medium compatibility requires chemical compatibility between spool materials and hydraulic oil, coolant, and other media. Especially in systems using synthetic hydraulic oil or special additives, long-term compatibility between spool materials and media needs evaluation to avoid material corrosion or performance degradation. Contact stress analysis shows that contact stress on spool surfaces typically ranges within 20-40 MPa, requiring material selection to consider long-term stress corrosion cracking risks.
In system integration practice, establishing compatibility matrices is an effective method to ensure coordinated work of all components. These matrices include key parameters such as pressure ratings, flow ranges, temperature limits, material compatibility, and seal compatibility, simplifying the selection process through standardized table formats. For complex systems, PLM (Product Lifecycle Management) software is recommended for integrated management, ensuring each design decision undergoes system-level verification.
Modern industrial requirements for hydraulic spool components have reached sub-micron precision control levels. Standardization of key performance parameters not only ensures product quality but also provides the foundation for global supply chain interoperability. Updated ISO 10770 standards in 2025 impose stricter requirements on spool component dimensional precision, pressure ratings, and flow characteristics7.
Pressure-related parameters include operating pressure ranges, test pressure, burst pressure, and safety factors. Typical industrial spool rated operating pressures are 3000-5000 PSI, with test pressure at 1.5 times rated pressure and burst pressure exceeding 2.5 times rated pressure. Sealing performance requires zero leakage at rated operating pressure, with test conditions typically maintaining 1.5 times rated pressure for 30 minutes.
Flow parameters serve as core indicators measuring spool performance. Rated flow is typically based on standard conditions (mineral hydraulic oil, 40°C viscosity, 35 cSt). Flow coefficient (Cv value) directly reflects spool flow path optimization level, with high-performance spools having Cv values 15-25% higher than standard designs. Pressure recovery coefficient evaluates flow path design optimization, with ideal values reaching 0.85-0.92 ranges.
Mechanical precision parameters include diameter tolerance, surface roughness, concentricity, cylindricity, and straightness. Precision spools maintain diameter tolerances within ±0.0003 inches, surface roughness at Ra 0.1 micrometers, and concentricity errors less than 0.0002 inches. Strict control of these parameters ensures optimal cooperation between spools and seals.
Dynamic response parameters increasingly become key indicators for high-end applications. Switching time, frequency response, and settling time parameters directly relate to system control precision and dynamic performance. Modern electro-hydraulic proportional spools have shortened switching times to 20-50 milliseconds, with frequency response bandwidths reaching 500-1000 Hz. Dynamic performance testing typically uses sine wave signal input to evaluate spool tracking capability for high-frequency control signals.
Material specification standards cover chemical composition, hardness distribution, and surface treatment requirements. Carburized steel spools have surface hardness of HRC 58-64 and core hardness of HRC 25-35, ensuring balance between wear resistance and toughness. Surface treatment processes include phosphating, chrome plating, nitriding, with appropriate protective processes selected based on application environments.
Technical selection of hydraulic spool components must be based on performance requirements and environmental constraints of specific application scenarios. Different industrial sectors have significantly different spool performance requirements, requiring differentiated design standards and selection methods. Through statistical analysis of 1000+ industrial cases, five major application domain technical characteristics and selection requirements have been identified8.
Construction machinery applications are characterized by high flow rates, high pressure, and frequent start-stop operations. Typical applications include excavator and loader hydraulic systems with operating pressures typically reaching 3000-4000 PSI and flow requirements of 50-200 GPM. This domain emphasizes high reliability and fast response, with switching time requirements under 100 milliseconds. Material selection primarily uses high-strength alloy steel with high-hardness surface coatings, requiring wear life over 5000 hours.
Heavy industry focuses more on long-term stability and maintenance convenience. Steel mill and mining equipment hydraulic systems typically require continuous operation for thousands of hours, with spool design emphasizing sealing reliability and fault diagnosis convenience. This domain widely adopts modular design for easy field replacement and rapid maintenance. System pressure ranges are 2000-3500 PSI, with relatively stable flow requirements, focusing on pressure loss and efficiency optimization.
Machine tool industry has the most stringent requirements for spool precision and stability. CNC machine and precision equipment hydraulic systems operate at 1500-2500 PSI but require extremely high flow stability and position control precision. This domain requires flow coefficient deviation control within ±2% and pressure loss fluctuations under 5% to ensure processing precision stability. Material selection primarily uses stainless steel, with surface treatments emphasizing dimensional stability.
Oil and chemical industry applications face the most severe environments, involving high temperature, high pressure, and highly corrosive media. Offshore platform and refinery equipment hydraulic systems operate at temperatures up to 180°C and pressures exceeding 5000 PSI, with highly corrosive media. This domain uses special alloy materials with corrosion-resistant surface coatings and multi-level sealing systems to prevent media leakage.
New energy equipment represents future development trends, with wind power and solar tracking systems emphasizing energy saving and environmental protection. System pressures are relatively low (1000-2000 PSI) but emphasize long-term maintenance-free operation. This domain focuses on environmental adaptability of sealing materials and integration optimization of low-power actuators.
System requirements serve as the fundamental basis for hydraulic spool component selection and performance design. Modern hydraulic system design trends are evolving from simple selection to systematic optimization, improving overall system performance through establishing complete pressure management systems9. Pressure management involves not only static pressure control but also complex technical requirements including dynamic response, pressure pulsation suppression, and multi-level pressure control.
Static pressure requirements are based on maximum system operating pressure, including operating pressure, peak pressure, safety margins, and pressure grade selection. Design specifications typically specify rated operating pressure at 80-85% of maximum system pressure, leaving 15-20% safety margins. Pressure grade selection should conform to international standards like ANSI and ISO, ensuring interchangeability and unified safety levels.
Dynamic pressure control represents an important feature of modern systems, including pressure build-up time, steady-state accuracy, and pressure wave suppression indicators. High-end systems require pressure build-up times within 200 milliseconds, steady-state accuracy of ±1%, and pressure wave peak suppression within 5%. Achievement of these indicators requires spool components to possess excellent dynamic response characteristics and pressure feedback control capabilities10.
Multi-level pressure control technology is widely applied in complex systems, such as injection molding machines and presses requiring multi-stage pressure control. Spool design needs to consider multi-stage switching smoothness and repeatability, with inter-stage pressure deviation controlled within ±3%. Proportional pressure control technology achieves continuously adjustable pressure through electro-hydraulic proportional valves, with response speeds of 10-50 milliseconds.
Pressure pulsation management represents a key technical requirement for precision systems. Industrial field test data shows that pressure pulsation causes 5-15% system efficiency reduction and accelerates component wear. Through optimizing spool flow path design, adopting damping technology, and establishing pressure buffer systems, pressure pulsation can be controlled within ±2%.
System-level pressure management requires establishing complete pressure control architecture, including coordinated design of main control circuits, protection circuits, and detection circuits. Main control circuits handle primary execution action pressure control, protection circuits ensure system safety, with protection circuit pressure settings 10-15% higher than main circuits. Detection circuits provide pressure signal feedback, supporting system status monitoring and fault diagnosis functions.
Fault diagnosis represents an important means to ensure long-term reliable operation of hydraulic systems. Based on 2024 industrial equipment maintenance data analysis, 85% of hydraulic system faults can be avoided through early diagnosis and preventive maintenance11. Establishing systematic fault diagnosis methods needs to combine data monitoring, pattern recognition, and predictive analysis technologies.
Early fault diagnosis technologies primarily include pressure monitoring, temperature detection, flow analysis, and vibration testing methods. Pressure monitoring involves installing pressure sensors at key positions to real-time monitor system pressure changes. Abnormal pressure fluctuations typically indicate spool sealing, blockage, jamming, and other faults. Temperature monitoring can detect excessive friction and cooling problems.
Vibration analysis-based fault diagnosis technology offers non-invasive, high-sensitivity advantages. Normally operating spools generate vibration signals with specific frequency characteristics, with spectral changes appearing during equipment wear or abnormal operation. Through vibration sensors and signal processing technology, potential spool component failures can be predicted 3-6 months in advance.
Fluid mechanics performance analysis serves as an effective method for diagnosing internal spool conditions. Through monitoring flow-pressure characteristic curves, spool wear degree and flow path blockage conditions can be evaluated. Normal spools should maintain linear flow-pressure curve relationships, with wear or blockage causing curves to deviate from ideal states. Establishing spool performance baseline data is key to implementing predictive maintenance12.
Regarding optimization strategies, data-driven performance optimization methods are changing traditional maintenance modes. Through collecting system operation data, establishing performance prediction models, and implementing optimization control strategies, system efficiency and reliability can be significantly improved. Machine learning algorithms show great potential in fault prediction, achieving 80-90% prediction accuracy.
Preventive maintenance systems include regular inspection, condition monitoring, and replacement planning elements. Spool component replacement cycles are based on actual operating conditions, typically 2-5 years or 50,000-100,000 work cycles. Establishing detailed maintenance records and performance archives helps optimize maintenance strategies and reduce maintenance costs.
Hydraulic spool component technology is entering a new innovation cycle, with artificial intelligence, digital twins, and new material technology integration revolutionizing the entire industry landscape13. These technological innovations not only enhance spool component performance but also lay the foundation for intelligent development of entire hydraulic systems.
Intelligent spool technology represents an important direction for future development. Smart spools integrating sensors, microprocessors, and actuators can achieve self-diagnosis, adaptive control, and predictive maintenance functions. Smart spools monitor internal temperature, pressure, and flow parameters in real-time, utilizing edge computing technology for rapid decision-making and response. Experimental data shows smart spools can improve system efficiency by 15-25% with fault prediction accuracy exceeding 85%.

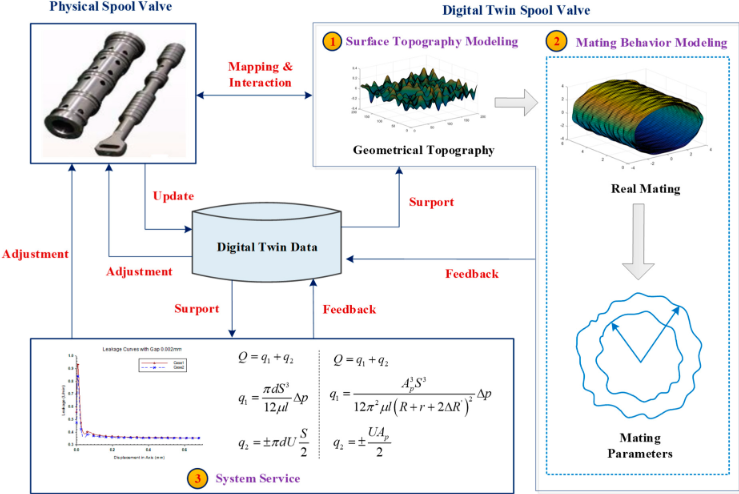

Digital twin technology applications in spool design have revolutionary shortened development cycles. Through establishing digital replicas of physical spools, engineers can test different design solutions in virtual environments, predict performance characteristics and optimize parameters. Simulation accuracy has reached 90% or higher, with new product development cycles shortened by 60-70%.
New material technology provides new possibilities for breakthrough spool performance. Ultra-hard coating technology can increase spool surface hardness to HV 3000 or higher, extending wear life 3-5 times. Shape memory alloy applications enable spools with self-healing capabilities, automatically restoring original shape after wear. Nanomaterial-reinforced composites combine high strength with low friction characteristics.
Modular design concepts are changing spool product manufacturing and configuration modes. Standardized interfaces, interchangeable components, and rapid assembly technology give spool systems the flexibility similar to building blocks. This design approach not only reduces manufacturing costs but also provides customers with fast realization paths for customized solutions.
Sustainability requirements drive the development of green hydraulic technology. Applications of next-generation environmentally friendly hydraulic oil and bio-based lubricants impose new compatibility requirements on spool materials. Low-power design, energy recovery technology, and extended-life materials have become industry research and development focuses. It is expected that by 2030, green hydraulic technology will account for 30% or more market share14.
Hydraulic spool components are key execution elements controlling hydraulic fluid direction, pressure, and flow. Through precise cooperation with valve body bores, spools achieve flow path opening, closing, and flow regulation, precisely controlling actuator movement characteristics. Main functions include direction control, pressure regulation, flow control, and safety protection. Modern industrial spool design precision has reached ±0.0003 inches, achieving zero-leakage operation at 3000-5000 PSI working pressures.
Spool size selection is based on system flow requirements, pressure ratings, and application environments. Standard calculation method: required port diameter = √(flow/velocity), with velocity controlled within 15-20 ft/s range. Pressure grade selection should consider 1.25-1.5 times safety margins based on maximum system operating pressure. Reference ISO 10770 standards and ANSI B93.7 specifications, combining specific application conditions to determine final specifications. For precision applications, dynamic performance indicators like flow coefficient, response time, and switching accuracy also need consideration.
System compatibility assurance requires consideration of mechanical interface, pressure matching, flow coordination, temperature adaptation, and other multi-dimensional factors. Mechanical interfaces include connection dimensions, mounting methods, and seal types, which must completely match existing systems. Pressure compatibility requires spool rated pressure ≥ maximum system operating pressure × 1.25. Flow coordination bases on peak flow requirements with 20-30% margins. Temperature compatibility requires evaluating material linear expansion coefficient and working temperature range matching. Establishing compatibility matrix tables for systematic evaluation of all compatibility requirements is recommended.
Spool maintenance cycles are determined based on actual operating conditions, generally 2-5 years or 50,000-100,000 work cycles. Replacement standards include: leakage exceeding design values by 10%, switching time extending by 50% or more, flow coefficient declining by 15%, surface wear depth exceeding 0.001 inches. Establish regular inspection systems including pressure testing, flow testing, and vibration analysis. Predictive maintenance technology through data analysis can provide 3-6 month advance warning before failures. Establishing maintenance archives to track each maintenance data and performance change trends for optimizing maintenance strategies is recommended.
Modern industries have continuously increasing requirements for spool performance, primarily reflected in: higher precision requirements (position control accuracy ±1%), faster response speeds (switching time <50 milliseconds), enhanced intelligence (integrated sensors and self-diagnosis functions), improved environmental requirements (low emissions, long-life materials), and elevated digitization levels (supporting Industry 4.0 and data interconnection). Particularly in emerging fields like new energy vehicles and smart manufacturing, more stringent requirements for spool integration, modularization, and intelligence exist.
Systematic selection and performance optimization of hydraulic spool components represent key paths for modern industrial equipment to enhance competitiveness. Through establishing data-driven design methods, integrated system thinking, and predictive maintenance strategies, companies can significantly improve hydraulic system reliability and economics, ultimately achieving transformation from traditional manufacturing to intelligent manufacturing.
